20g Automatic Vertical Pouch Spice Powder Sachet Filling Packing sealing Machine

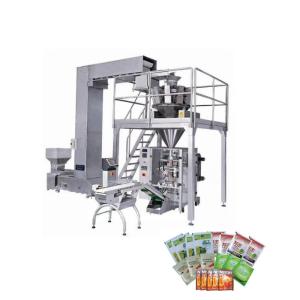

PICTURE FOR REFERENCE
Packing specification
Rtl-450:
2.1 Multilayer composite film of packaging materials
2.2 Packaging products can be packaged with different cutting devices
2.3 Packaging Speed RTL-420 Packaging speed: 32-60 packs/min
2.4 Packing accuracy ±2%
The characteristics :
High quality packaging and minimal product loss,
Perfect packaging appearance.
Easy upgrade of main machine
Good working environment.
Details of features:
1.The equipment frame adopts 304 stainless steel, in line with food QS and pharmaceutical GMP health standards;
2. Equipped with safety protection, in line with the enterprise safety management requirements;
3. Adopt independent temperature control system, accurate temperature control, ensure the sealing is beautiful, smooth;
4. Servo motor pulling film, PLC control, touch screen control, automatic control ability of the whole machine, high reliability and intelligence, high speed, high efficiency;
5. Double belt pull film, pull film system and color standard control system, can be automatically adjusted through the touch screen, the operation of sealing and incision correction is simple;
6.Touch screen can store a variety of different product packaging process parameters, when changing the product can be used at any time without adjustment;
7. The machine is equipped with a fault display system, which can help troubleshoot the fault in time and reduce the requirement for manual operation;
Technical parameters:
| Packing speed: | 30-50bag/min |
| Bag-making size : | (L)80-280mm (W)80-200mm |
| Metering range: | 800mL (maximum) |
| The maximum packaging film | width is 400mm |
| The film thickness : | 0.04-0.08mm |
| Gas consumption: | 0.8 Mps 0.6m3/min |
| Total power/voltage: | 3.0kW 220V 50HZ |
| Dimensions: | L1250mm*W1000mm*H1700mm |
| The weight: | 460kg |
| | |
Electrical parts:
| NO. | NAME | | BRAND | FUNCATION | |
| 1 | Servo motor | CHINA | INOVANCE | PULLING | |
| 2 | Temp control | Korea | Autonics | Temp control | |
| 3 | GPG motor | CHINA | TAIBANG | Transport control | |
| 4 | PLC | CHINA | INOVANCE | Program control | |
| 5 | Touch screen | CHINA | INOVANCE | | |
| 6 | Sensor | CHINA | BDL | BAG CHECK | |
Medium-sales Services:
CORETAMP have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.
After-sale Services:
1.Manules / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happend and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. CORETAMP engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. One year guranty for machine, two years guaranty for electrical part.
During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. CORETAMP has an independent team for after-sale service. Any emergency please call the saleman or our after-sale's manager.
